Nickel Alloy C276/UNS N10276 Blind/BL Flange for Oilfield Service

Short Description:

Alloy C-276 has excellent resistance to localized corrosion, stress corrosion cracking, and to both oxidizing and reducing media, thus making it suitable for a wide variety of chemical process environments, including ferric and cupric chlorides, hot contaminated media (organic and inorganic), formic and acetic acids, seawater and brine solutions.


Product Detail

Product Tags

Grade: Alloy C276 /N10276 , Alloy 625 /N06625 , Alloy 600 /N06600 ,Alloy 601 /N06601 , Alloy 718 /N07718, Alloy 800 /N08000 , Alloy 825 /N08825 , Alloy 400 /N04400,etc

Standard: ASTM B564 ,ASTM B637, ASTM B462, etc

Surface: Bright Annealed

Technology: Cold Rolled; Forged

NDT: Radiographic Test; Penetrant Test

Inspection: 100%

Packing: Plywooden case

Quality Assurance: ISO & PED



UNS

Alloy

Scope (mm)

Seamless pipe &tube

Welded pipe & tube

Fitting/Flange

Sheet, Plate, Strip

UNS N10276

ALLOY C276

OD: 4.5-355mm
WT: 1.65-11.13mm
L: 0-12000mm
OD: 17.1-914.4mm
WT: 1-36mm
L: <12000mm
DN15-DN600 Plate: WT<6mm, WDT<1200mm, L<3000mm;WT>6mm, WDT<2800mm, L<8000mm
Coil: WT:0.15-3MM, WDT: <1000mm

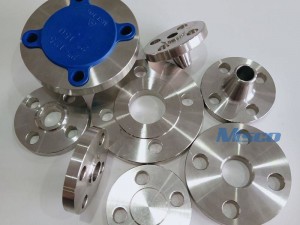

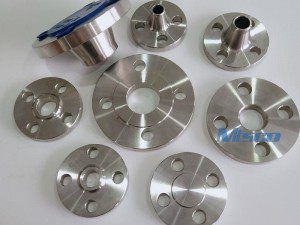

nickel alloy c276 flange

Blind Flange:

Blind flange is a solid disk used to block off a pipeline or to create a stop. Similar to a regular flange, a blind flange has mounting holes around the perimeter and the gasket sealing rings are machined into the mating surface. The difference is that a blind flange has no opening for fluids to pass through.



Blind Flange Advantages

a) Superior surface finish

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment



Alloy C276 Chemical composition:

%

Ni

Cr

Mo

Fe

W

Co

C

Mn

Si

P

S

V

min

balance

20.0

12.5

2.0

2.5

-

-

-

-

-

-

-

max

22.5

14.5

6.0

3.5

2.5

0.015

0.50

0.08

0.020

0.020

0.35



Alloy C-276 has excellent resistance to localized corrosion, stress corrosion cracking, and to both oxidizing and reducing media, thus making it suitable for a wide variety of chemical process environments, including ferric and cupric chlorides, hot contaminated media (organic and inorganic), formic and acetic acids, seawater and brine solutions. It is one of the few materials that withstands the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide.
