Alloy 200/201 UNS N02200/N02201 Pure Nickel Welded Pipe For Aerospace

Short Description:

Nickel 201 is the low-carbon version of Nickel 200. Because of its low carbon content, Nickel 201 is not subject to embrittlement by intergranularly precipitated carbon or graphite when exposed to temperatures of 315 to 760℃ for prolonged time if carbonaceous materials are not in contact with it. Therefore, it is a substitute for Nickel 200 in Applications above 315℃.



Product Detail

Product Tags

Grade: Alloy 200 UNS N02200, Alloy 201/N02201, Alloy 625 /N06625 , Alloy 600 /N06600 ,Alloy 601 /N06601 , Alloy 718 /N07718, Alloy C276 /N10276 , Alloy 800 /N08800 , Alloy 825 /N08825 , Alloy 400 /N04400,etc

Standard: ASTM B517 ,ASTM B775, ASTM B516, ASTM B751, ASTM B619, ASTM B725, ASTM B730, etc

Size: OD:17.1-914.4mm

     WT:0.75-20mm

     Length:≤12000mm

Surface: Annealed Pickled/ Bright Annealed

Technology: PAW/GTAW

NDT: Radiographic test; Penetrant test;Hydrostatic test; Eddy current test; Ultrasonic test

Inspection: 100% RT

Packing: Plywooden case/ Nesting loading

Quality Assurance: ISO & PED

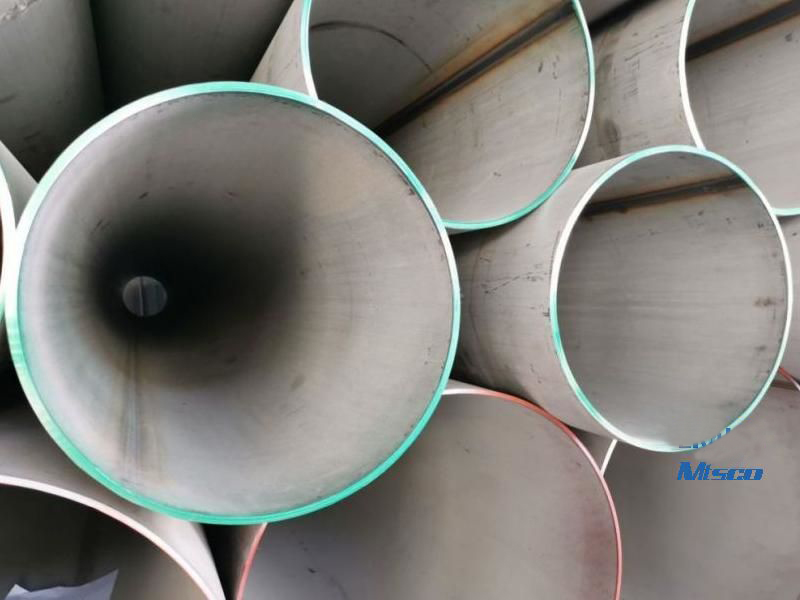

IMG_20220224_151010

Welded Pipe Specifications :

DNNPS(Inch)D(mm)SCH5SSCH10SSCH10SCH20SCH30STDSCH40SCH60SCH80XS
30012323.93.964.57-6.358.389.5310.3114.2717.4812.7
35014355.63.964.786.357.929.539.5311.1315.0919.0512.7
40016406.44.194.786.357.929.539.5312.716.6621.4412.7
45018457.24.194.786.357.9211.139.5314.2719.0523.8312.7
500205084.785.546.359.5312.79.5315.0920.6226.1912.7
550225594.785.546.359.5312.79.53-22.2328.5812.7
600246105.546.356.359.5314.279.5317.4824.6130.9612.7
65026660--7.9212.7-9.53---12.7
70028711--7.9212.715.889.53---12.7
750307626.357.927.9212.715.889.53---12.7
80032813--7.9212.715.889.5317.48--12.7
85034864--7.9212.715.889.5317.48--12.7
90036914--7.9212.715.889.5319.05--12.7
95038965-----9.53---12.7
1000401016-----9.53---12.7
1050421067-----9.53---12.7
1100441118-----9.53---12.7
1150461168-----9.53---12.7
1200481219-----9.53---12.7



Features:

Nickel 201 is the low-carbon version of Nickel 200. Because of its low carbon content, Nickel 201 is not subject to embrittlement by intergranularly precipitated carbon or graphite when exposed to temperatures of 315 to 760℃ for prolonged time if carbonaceous materials are not in contact with it. Therefore, it is a substitute for Nickel 200 in Applications above 315℃. However it does suffer from intergranular embrittlement by sulfur compounds at temperatures above 315℃. Sodium peroxide can be used to change them to sulfates to counteract their effect.



Nickel 200 is commercially pure wrought nickel. It is highly resistant to various reducing chemicals. It can also be used in oxidizing conditions that cause the formation of a passive oxide film, for instance its unexcelled resistance to caustic alkalis. Nickel 200 is limited to service at temperatures below 315℃, because at higher temperatures it suffers from graphitization which results in severely compromised properties. In that circumstance, Nickel 201 is used instead. It has a high Curie temperature and good magnetostrictive properties. Its thermal and electrical conductivities are higher than nickel alloys.



Terms & ConditionsPrice ItemFOB, CFR, CIF or as negotiation
PaymentT/T, LC or as negotiation
Delivery Time30 working days after received your deposit (Normally according to the order quantity)
PackageIron case; woven bag or as per customer’s requirement
Quality RequirementMill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
QualityTestNTD(Ultrasonic test, Eddy Current test);
Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test);
Metal Test(Metallographic Analysis, Impact Test-High/low temperature);
Chemical Analysis(Photoelectric Emission Spectroscopic)
MarketMain MarketEurope, Middle East, Southeast Asia, South America. etc
