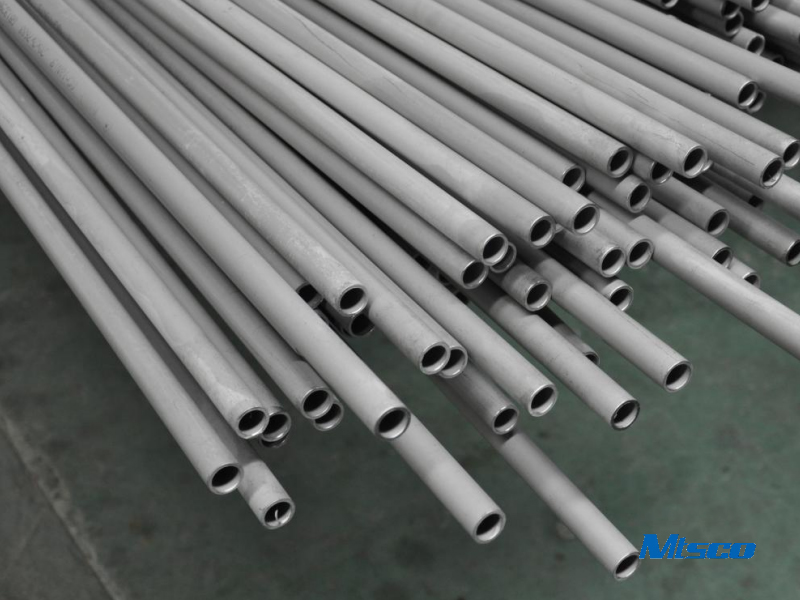

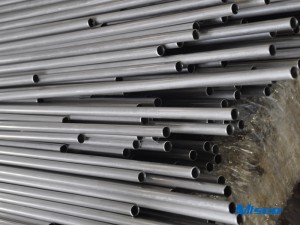

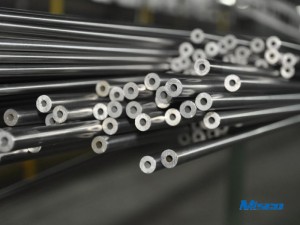

Nickel Alloy C-4 ASTM B564 Seamless Nickel Alloy Tube With Annealed&Pickling Used in Acidic Environment
Material: UNS N06455
Standard: ASTM B163/B407
Outer Diameter: 17.1mm-219.1mm
Wall Thickness: 1.65mm-20.00mm
Surface: Bright Annealed/ Annealed Pickling
Technology: Cold Drawn / Cold Rolled
NDT: Eddy Current Or Hydraulic Test
Inspection: 100%
Packing: Plywooden case or Bundle
Quality Assurance：ISO & PED & AD2000
Type: Seamless&Welded
Nickel Alloy C-4 Chemical Composition
| % | Ni | Cr | Mo | Fe | Co | C | Mn | Si | P | S | Ti |
| min | balance | 14 | 14 | ||||||||
| max | 18 | 17 | 3 | 2 | 0.015 | 1 | 0.08 | 0.04 | 0.03 | 0.7 |
Physical properties:
| Density | 8.64 g/cm3 |
| Melting range | 1350-1380℃ |
Features: Alloy C-4 has outstanding high-temperature stability, and has excellent resistance to stress-corrosion cracking and oxidizing atmospheres up to 1040℃. It has exceptional resistance to a wide variety of chemical process environments, including hot contaminated mineral acids, solvents, chlorine and chlorine contaminated media (organic and inorganic), formic and acetic acids, acetic anhydride, and seawater and brine solutions.
Applications: Chemical processing involving wet chlorine, hypochloric acid, hydrochloric acid, acetic acid and acetic anhydride; flue gas scrubber systems; pickling operations; and electro-galvanizing.
