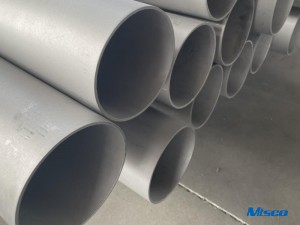

Big Size Welded Pipe For Nickel Alloy 625/ UNS N06625 With AP Surface
Grade: Alloy 625 /N06625 , Alloy 600 /N06600 ,Alloy 601 /N06601 , Alloy 718 /N07718, Alloy C276 /N10276 , Alloy 800 /N08800 , Alloy 825 /N08825 , Alloy 400 /N04400,etc
Standard: ASTM B517 ,ASTM B775, ASTM B516, ASTM B751, ASTM B619, ASTM B725, ASTM B730, etc
Size: OD:17.1-914.4mm
WT:0.75-20mm
Length:≤12000mm
Surface: Annealed Pickled/ Bright Annealed
Technology: PAW/GTAW
NDT: Radiographic test; Penetrant test;Hydrostatic test; Eddy current test; Ultrasonic test
Inspection: 100% RT
Packing: Plywooden case/ Nesting loading
Quality Assurance: ISO & PED
UNS | Alloy | Scope (mm) | |||
Seamless pipe &tube | Welded pipe & tube | Fitting/ Flange | Sheet, Plate, Strip | ||
UNS N06625 | ALLOY 625 | OD: 4.5-355mm WT: 0.7-20mm L: 0-12000mm | OD: 17.1-914.4mm; WT: 1-36mm; L：<12000mm | DN15-DN600 | Plate: WT<6mm, WDT<1200mm, L<3000mm; WT>6mm, WDT<2800mm, L<8000mm Coil: WT:0.15-3mm WDT:<1000mm |
Nickel Alloy 625 Chemical composition:
% | Ni | Cr | Mo | Fe | C | Mn | Si | P | S | Co | Nb+Ta | Al | Ti |
min | 58.0 | 20.0 | 8.0 | 3.15 | |||||||||
max | 23.0 | 10.0 | 5.0 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 1.00 | 4.15 | 0.40 | 0.40 |
Features: Alloy 625 has excellent strength at temperatures up to 816℃. At higher temperatures, its strength is generally lower than that of other solid solution strengthened alloys. Alloy 625 has good oxidation resistance at temperatures up to 980℃ and shows good resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion resistant alloys.
Applications: Chemical process industry and sea water application. Inconel 625 is used in short term applications at temperatures up to 816℃. For long term service, it is best restricted to a maximum of 593℃, because long term exposure above 593℃ will result in significant embrittlement.
Through more than ten years of research and development, the production of MTSCO Alloy technology and efficiency of various materials have been greatly improved. The enterprise has passed the national quality management system certification of weapons and equipment, obtained more than 24 authorized patents, participated in the revision of 9 national standards and 3 industry standards. MTSCO has actively participated in the civil military integration project, provided high-temperature alloy materials for a PLA unit, provided high-quality special alloy materials for China ordnance industry group, and provided new low expansion alloy materials for China aviation industry. It has been successfully applied to the domestic large aircraft C919, replacing imports with domestic ones, breaking the foreign blockade monopoly and filling the domestic blank.
