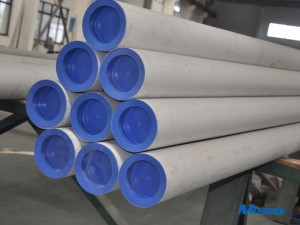

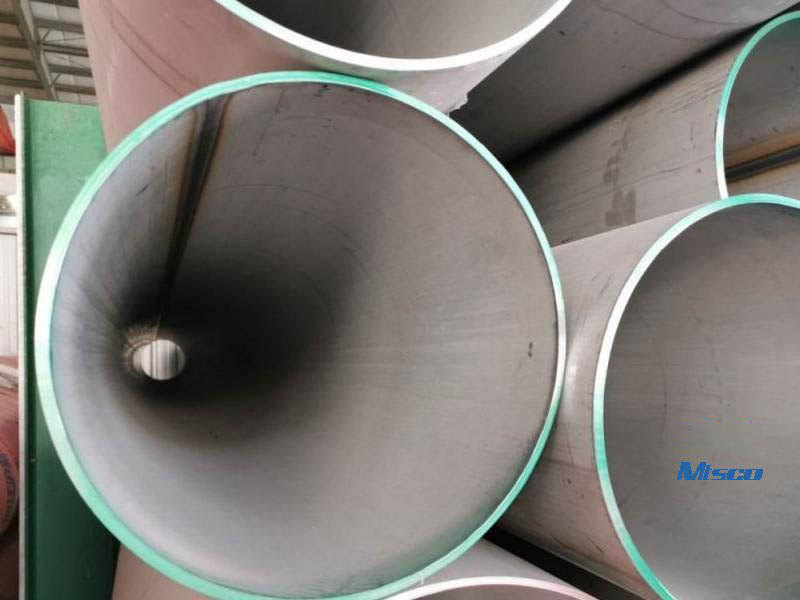

ASTM Nickel Alloy K500 6 Inch Welded Pipe For Perochemical Industry
Grade: Alloy K500/N05500, Alloy 625 /N06625 , Alloy 600 /N06600 ,Alloy 601 /N06601 , Alloy 718 /N07718, Alloy C276 /N10276 , Alloy 800 /N08800 , Alloy 825 /N08825 , Alloy 400 /N04400,etc
Standard: ASTM B517 ,ASTM B775, ASTM B516, ASTM B751, ASTM B619, ASTM B725, ASTM B730, etc
Size: OD:17.1-914.4mm
WT:0.75-20mm
Length:≤12000mm
Surface: Annealed Pickled/ Bright Annealed
Technology: PAW/GTAW
NDT: Radiographic test; Penetrant test;Hydrostatic test; Eddy current test; Ultrasonic test
Inspection: 100% RT
Packing: Plywooden case/ Nesting loading
Quality Assurance: ISO & PED
Welded Pipe Specifications :
| DN | NPS(Inch) | D(mm) | SCH5S | SCH10S | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | SCH80 | XS |
| 300 | 12 | 323.9 | 3.96 | 4.57 | - | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 17.48 | 12.7 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 19.05 | 12.7 |
| 400 | 16 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 21.44 | 12.7 |
| 450 | 18 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 23.83 | 12.7 |
| 500 | 20 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 26.19 | 12.7 |
| 550 | 22 | 559 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | - | 22.23 | 28.58 | 12.7 |
| 600 | 24 | 610 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 30.96 | 12.7 |
| 650 | 26 | 660 | - | - | 7.92 | 12.7 | - | 9.53 | - | - | - | 12.7 |
| 700 | 28 | 711 | - | - | 7.92 | 12.7 | 15.88 | 9.53 | - | - | - | 12.7 |
| 750 | 30 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | 9.53 | - | - | - | 12.7 |
| 800 | 32 | 813 | - | - | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | - | - | 12.7 |
| 850 | 34 | 864 | - | - | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | - | - | 12.7 |
| 900 | 36 | 914 | - | - | 7.92 | 12.7 | 15.88 | 9.53 | 19.05 | - | - | 12.7 |
| 950 | 38 | 965 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1000 | 40 | 1016 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1050 | 42 | 1067 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1100 | 44 | 1118 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1150 | 46 | 1168 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1200 | 48 | 1219 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
Application:
1. Petrochemicals, chemicals, pulp
2. Superheater of boiler, heat exchanger
3. Instrumentation, automobiles
4. Food & Beverage processing
5. Exhaust purification device
6. Construction and ornament
Features:
Alloy K500 / UNS N05500 combines Alloy 400’s excellent corrosion resistance with greater strength and hardness as a result of adding aluminum and titanium and proper heat treatment to cause precipitation hardening. It is nonmagnetic at temperatures as low as -101℃. Alloy K500 / UNS N05500 has excellent dimensional stability which is very useful in high precision devices. Like Alloy 400, it does not undergo ductile-to-brittle transition at cryogenic temperatures as low as that of liquid hydrogen. Its tensile and yield strengths increase while ductility and toughness are only slightly impaired.
