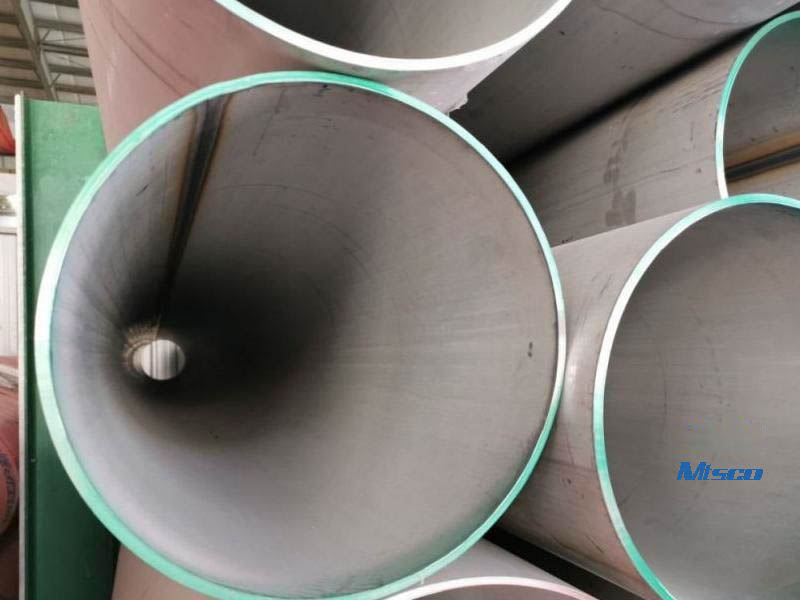

ASTM B775 Aleación de níquel 400/ UNS N04400 DN200 Tubo soldado de gran tamaño para el servicio de campo petrolero
Calificación: Alloy 400 /N04400, Alloy 625 /N06625 , Alloy 600 /N06600 ,Alloy 601 /N06601 , Alloy 718 /N07718, Alloy C276 /N10276 , Alloy 800 /N08800 , Alloy 825 /N08825 ,,etc
Estándar: ASTM B517 ,ASTM B775, ASTM B516, ASTM B751, ASTM B619, ASTM B725, ASTM B730, etc
Tamaño: OD:17.1 - 914.4 mm
WT:0.75 - 20 mm
Length:≤12000 mm
Superficie: Annealed Pickled/ Bright Annealed
Tecnología: PAW/GTAW
END: Radiographic test; Penetrant test;Hydrostatic test; Eddy current test; Ultrasonic test
Inspección: 100% RT
Embalaje: Plywooden case/ Nesting loading
Seguro de calidad: ISO y PED
Welded Pipe Specifications :
| DN | NPS (pulgada) | D (mm) | Sch5s | Sch10s | Sch10 | Sch20 | Std | 404 Not Found | Sch60 | Sch80 | XS | |
| 300 | 12 | 323.9 | 3.96 | 4.57 | - | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 17.48 | 12.7 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 19.05 | 12.7 |
| 400 | 16 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 21.44 | 12.7 |
| 450 | 18 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 23.83 | 12.7 |
| 500 | 20 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 26.19 | 12.7 |
| 550 | 22 | 559 | 4.78 | 5.54 | 6.35 | 9.53 | 12.7 | 9.53 | - | 22.23 | 28.58 | 12.7 |
| 600 | 24 | 610 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 30.96 | 12.7 |
| 650 | 26 | 660 | - | - | 7.92 | 12.7 | - | 9.53 | - | - | - | 12.7 |
| 700 | 28 | 711 | - | - | 7.92 | 12.7 | 15.88 | 9.53 | - | - | - | 12.7 |
| 750 | 30 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | 9.53 | - | - | - | 12.7 |
| 800 | 32 | 813 | - | - | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | - | - | 12.7 |
| 850 | 34 | 864 | - | - | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | - | - | 12.7 |
| 900 | 36 | 914 | - | - | 7.92 | 12.7 | 15.88 | 9.53 | 19.05 | - | - | 12.7 |
| 950 | 38 | 965 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1000 | 40 | 1016 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1050 | 42 | 1067 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1100 | 44 | 1118 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1150 | 46 | 1168 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
| 1200 | 48 | 1219 | - | - | - | - | - | 9.53 | - | - | - | 12.7 |
Nickel Alloy 400 Chemical Comitir:
% | Ni | Cu | Fe | C | Mn | Si | S |
mínimo | 63 | 28 | |||||
máximo | 34 | 2.5 | 0.3 | 2 | 0.5 | 0.024 |
Propiedades físicas de aleación de níquel 400
Densidad | 8,80 g/cm3 |
Rango de fusión | 1300-1350℃ |
Características: Alloy 400 has excellent resistance to corrosion by many reducing media such as sulfuric and hydrochloric acids. It is generally more resistant to corrosion by oxidizing media than higher copper alloys. Alloy 400 resists pitting and stress corrosion cracking in most fresh and industrial waters. It has good resistance in flowing seawater, but under stagnant conditions, pitting and crevice corrosion is induced. Monel 400 is probably the most resistant to hydrofluoric acid in all concentrations up to the boiling point, of all engineering alloys. Alloy 400 is notable for its toughness, it does not show embrittlement tendency at cryogenic temperatures. It is work hardenable.
