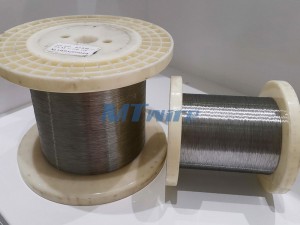

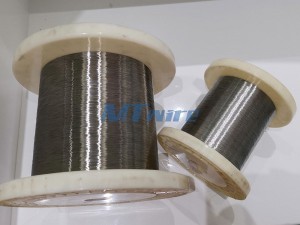

ASTM B574 liga de níquel C22/ UNS N06022 FIO COM SUPERFÍCIA DE RELELADO BRILHORES PARA FERRAMENTAS DE FOLHO DE DEPRIMENTO
Nota | Alloy 625 /N06625 , Alloy 600 /N06600, Alloy 601 /N06601, Alloy 718 /N07718, Alloy C276 /N10276, Alloy 800 /N08800, Alloy 825 /N08825, Alloy 400 /N04400,etc |
Padrão | ASTM B166; ASTM B446; ASTM B670; ASTM B335;ASTM B637; ASTM B574; ASTM B408; ASTM B425 , etc |
Superfície | Brilhante recozido/ recozido em conserva |
Tecnologia | Cold Drawing |
Ndt | Teste ultrassônico |
Inspeção | 100% |
Embalagem | Pallet/ Plywooden case/ Wooden Reel |
Garantia de qualidade | ISO & PED |
Nickel Alloy C22 Chemical composition
% | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | P | S | V |
equilíbrio | 20 | 12.5 | 2 | 2.5 | ||||||||
máx | 22.5 | 14.5 | 6 | 3.5 | 2.5 | 0.015 | 0.5 | 0.08 | 0.02 | 0.02 | 0.35 |
Bar/ haste | Arame | |
Diâmetro externo | ≥10 mm | 2mm - 5,5 mm |
LEngth | ≤12.000 mm | - |
Peso | - | ≤350kgs |
| Aplicativo | a) Trocador de calor |
| b) condensador | |
| c) Indústria de transporte marítimo | |
| d) Máquinas de precisão | |
| e) indústria de estrutura mecânica | |
| f) termopar e cabo etc |
Características: Nickel Alloy C-22 is a versatile Ni-Cr-Mo-W alloy with better comprehensive corrosion resistance performance than other Ni-Cr-Mo alloys, including Alloy C-276, Alloy C-4 and Alloy 625. Alloy C-22 has outstanding resistance to pitting, crevice corrosion and stress corrosion cracking. It has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chloride ions. It also offers optimum resistance to environments where reducing and oxidizing conditions are encountered in process streams. So it can be used where “upset” conditions are likely to occur or in multi-purpose plants.
