Forte Liga de Controle de Liga de Níquel de Resistência à Corrosão 825/ UNS N08825 Com Carrela de Ferro para Geotherm

Breve descrição:

MTSCO has been supplying control line to the heat exchanger/ oil and gas industry for more than a decade. In recent years, we have continued to make breakthroughs in the field of coiled tubing, downhole control lines, and chemical injection control lines. Our control line has been successfully used in kinds of heat exchanger, certain harsh subsea and downhole conditions, and through continuous research and development, is able to meet the stringent quality requirements of oil field and other industries.



Detalhes do produto

Tags de produto

MTSCO has been supplying linha de controle to the heat exchanger/ oil and gas industry for more than a decade. In recent years, we have continued to make breakthroughs in the field of coiled tubing, downhole control lines, and chemical injection control lines. Our control line has been successfully used in kinds of heat exchanger, certain harsh subsea and downhole conditions, and through continuous research and development, is able to meet the stringent quality requirements of oil field and other industries.

Material: S32205, S32507, TP316/L, TP304/L, Alloy 825/N08825, Alloy 400/ N04400, Alloy 625/ N06625

Outer Diameter: 1/4’’, 3/8’’, 1/2’’

Wall Thickness: 0.035”, 0.049’’, 0.065”

Contagem de orifícios: único/multi -núcleo

Comprimento: de acordo com as necessidades dos clientes, até 10000m



Padrão: ASTM A269/A213/A789/B704/B163, etc.

Certificado: ISO/CCS/DNV/BV/ABS, etc.

Inspeção: NDT; Teste hidrostático

Package: Wooden or iron reel

Materiais de embalagem plástica

Abreviação

Temperatura℃

Etileno tetrafluoroetileno

ETFE

-60℃~150℃

Etileno propileno fluoronado

FEP

 -110℃~200℃

Polietileno de alta densidade

PEAD

-60℃~100℃

Perfluorokoxy

PFA

-80℃~260℃

Polipropileno modificado

PP

30℃~150℃

Fluoreto de polivinilideno

PVDF

-30℃~150℃

Vulcanização termoplástica

TVP

-30℃~150℃

Náilon11

PA11

 -30℃~150℃



Qual é o selo da linha de controle?
Por várias razões, muitos poços têm uma linha de controle hidráulica que se estende pelo revestimento ou tubulação, que é usada para controlar válvulas ou mangas ou outro equipamento.
Às vezes, esses fios de controle vazam e não podem mais ser usados, às vezes não são mais necessários.
Essas linhas de controle podem estender centenas ou até milhares de metros para o subsolo.
Linhas de controle com defeito podem ser a fonte de vazamento acidental. Na fase de abandono, a linha de controle pode ser a fonte ou pipeline da migração de pressão.



Aplicação de cLinha OnTrol:

1. Trocador de calor

2 . Control line in oil and gas well

3. Tubulação de instrumento

4. Linha de tubulação de injeção química

5. Tubulação pré -isolada

6. Linha de tubulação de aquecimento elétrico ou aquecimento a vapor

7. Linha de tubulação de odos

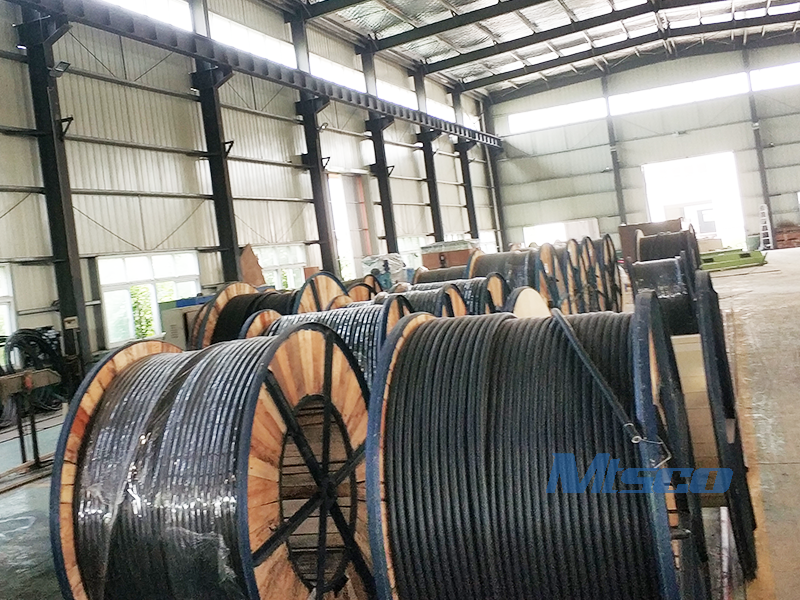

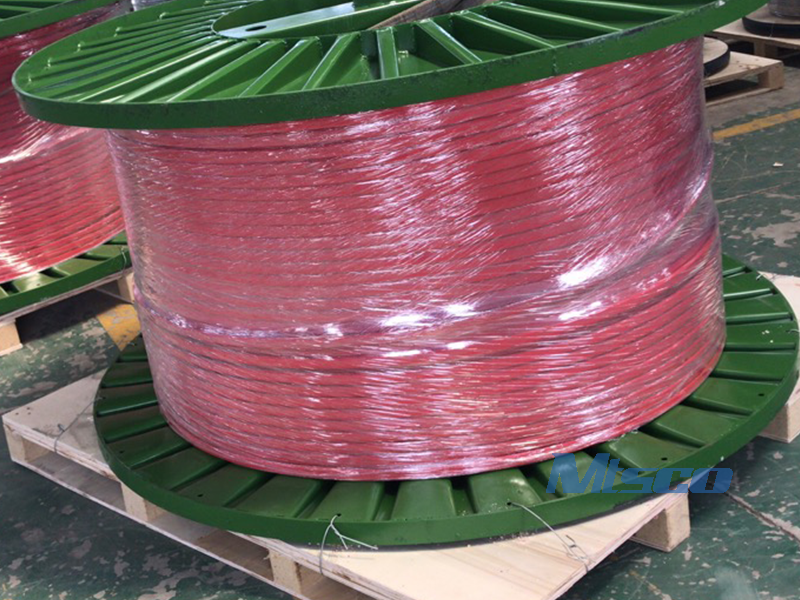

control line tubing (16)control line tubing (51)
